Vacuum soldering system VADU core

Uncompromising quality, efficient design

The vacuum soldering system VADU core, made by PINK, combines quality and reliability with eficient system design.
Preconfigured systems can be equipped with different features to realize even complex soldering tasks.

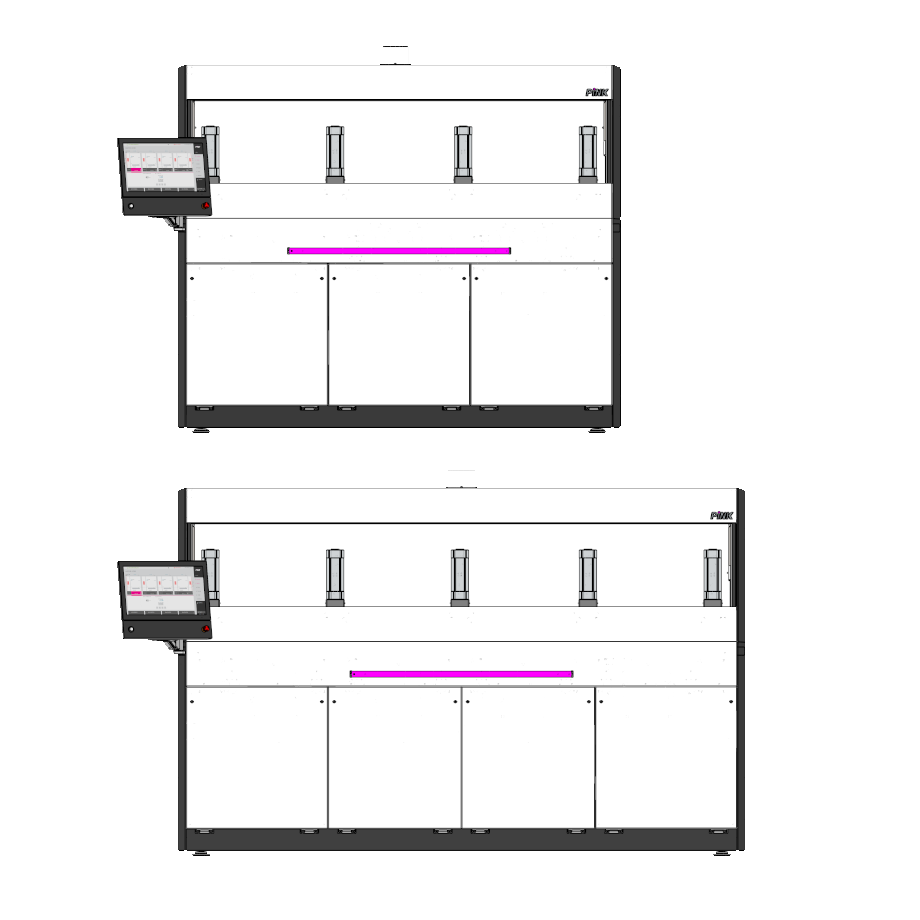

VADU 300XL core and VADU 400XL core

vacuum soldering system model VADU core

The system is offered with 3 chambers as VADU 300XL core and with 4 chambers as VADU 400XL core.
According to individual customer requests, the systems can be upgraded with additional options such as formic acid equipment, transfer systems, handling units etc.
Ergonomic handling and user-friendliness charachterize the intuitive user interface.

Icon system features

System features

  • Void-free solder connections
  • Soldering with preforms and/or pastes
  • Flux-free soldering with formic acid
  • Flux management system for solder paste processes
  • Individual, easy and free programmable soldering profiles
  • User-friendly GUI with different access levels
  • Process temperatures up to 400 °C
  • Separate soldering and cooling modules
  • Inert gas atmosphere (5 ppm O2)
  • Permanent process control and monitoring
  • Low energy and media consumption
  • SMEMA interface
  • Remote maintenance (VPN)
